Capital Power Presses

CAPITAL POWER PRESSES is a Unit of Aman Milling Machines leading manufacturer and exporter of power presses and is serving the machine tool industry.We have vast experience and in-depth knowledge of design and manufacturing of Power presses.

BACK TO INTRO PAGE

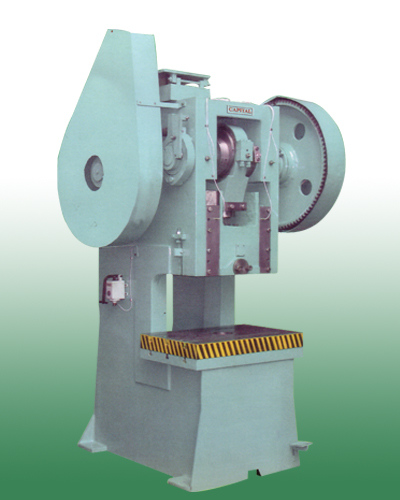

Specification "C" Type Power Press

CAPACITY	5 Ton	10 Ton	20 Ton	30 Ton	50 Ton	75 Ton	100 Ton	150 Ton	200 Ton	250 Ton
Bed Size	275 x375	300x450	375x525	400x600	500x750	550x800	6000x900	700x1000	800x1150	850x1200
Bed to Ram Bottom	225	250	250	300	375	400	455	465	500	550
Stroke Length	50	50	60	80	95	110	125	150	1690	175
Crank Shaft Dia Length	65	70	80	90	110	125	150	175	200	240
Gear Dia	350	450	525	600	650	750	850	100	1050	1200
Fly Wheel Dia	475	525	650	700	800	900	1000	1100	1200	1300
Holein Ram Clamping Die	22	25	28	32	40	45	50	55	60	70
No of Stroke per Minute	60	55	55	50	50	45	40	40	35	30
Power Required in(HP)	1	2	2	3	5	7.5	10	15	20	25
Motor RPM	1440	1440	1440	1440	1440	1440	1440	1440	1440	1440

Feeds & speeds are customized as per customer requirements also changes in . XYZ movements.
